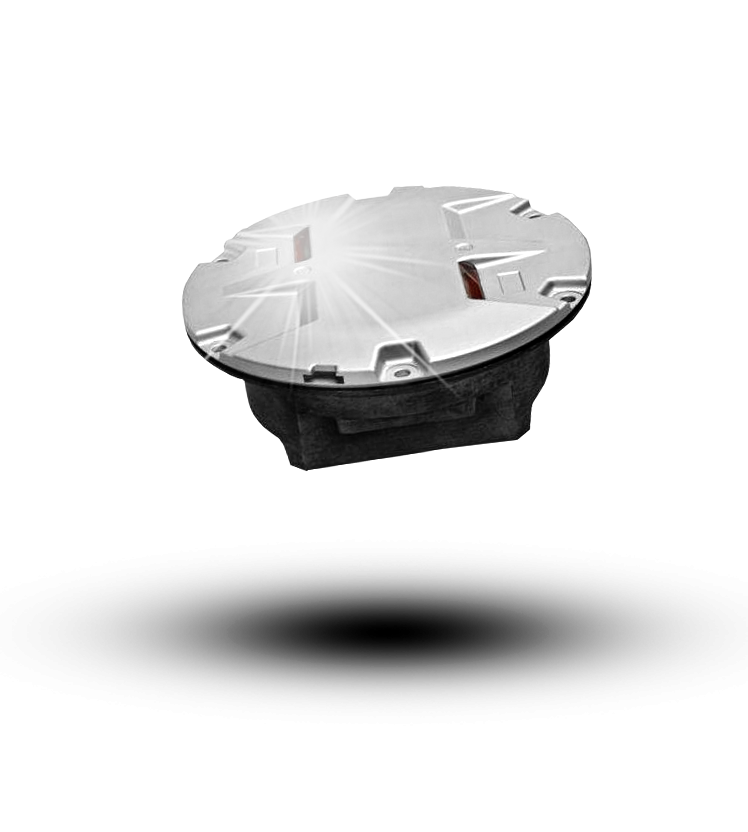

Lirl

LED Inset Runway Centreline and Rapid Exit Taxiway Indicator Light (R.E.T.I.L.)

A bidirectional or unidirectional 12″ diameter light, LIRL is used as a runway centreline light for ICAO CAT I, II and III, FAA and military runways and for R.E.T.I.L. ICAO and FAA RWSL, THL and RIL (L-850T) applications. With an LED rated life of over 100,000 hours under field operating conditions, the light output is variable like a traditional halogen lamp, as indicated by the FAA directive. Its drop-forged dome and cast aluminum lower cover make the fitting sturdy, but lightweight too for easy handling in the field.

    DIMENSION

    Diameter
    12″

    Width
    6.35 mm

    Device depth
    106 mm

    Basic depth
    150 mm

    COMPLIES WITH THE CURRENT EDITION OF THE FOLLOWING SPECIFICATIONS

    ICAO
    EASA
    IEC
    FAA
    NATO
    CAA
    IAAE

    POWER CONSUMPTION

    Unidirectional (w/o Arctic Kit)
    20 VA

    Unidirectional (with Arctic Kit)
    60 VA

    Bidirectional (w/o Arctic Kit)
    31 VA (1 plug) / 40 VA (2 plugs)

    Bidirectional (with Arctic Kit)
    71 VA (1 plug) / 120 VA (2 plugs)

    ADDITIONAL OPTIONS

    Fuse Cut-out:

    Electric device, placed in parallel with each lamp, that ensures the continuity of the secondary circuit in case of lamp failure.
