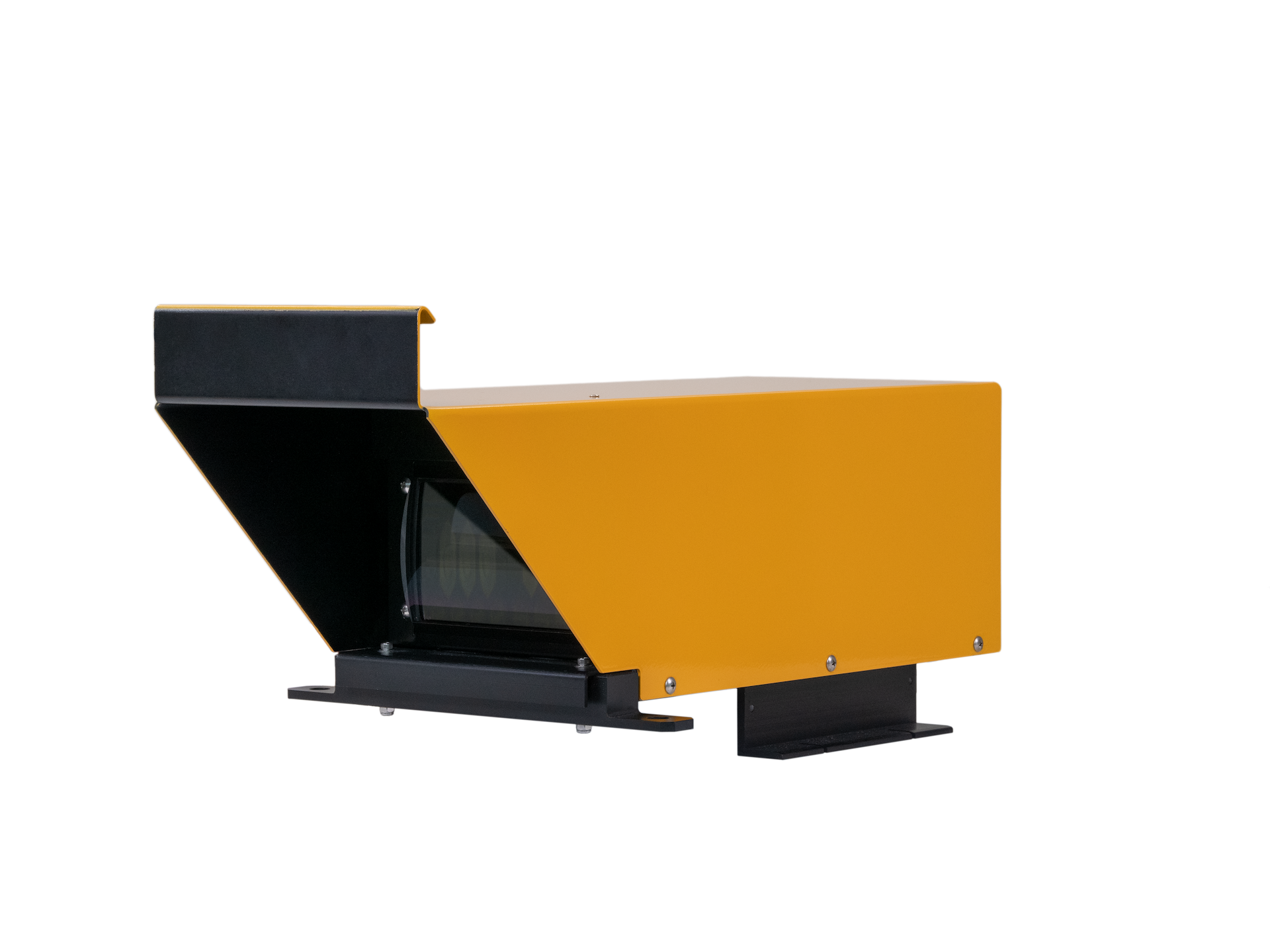

LED Papi
Hold the glide path.
The angle-of-approach guidance pilots trust, now in long-life LED.
DIMENSION
Minimum H
A: 394 mm; B: 566 mm
Supplied H
A: 601 mm; B: 773 mm
Extended H
A: 912 mm; B: 1083 mm
Width
324 mm
Depth
726 mm
COMPLIES WITH THE CURRENT EDITION OF THE FOLLOWING SPECIFICATIONS
FAA
ICAO
DGAC
UFC
POWER CONSUMPTION
ICAO/FAA L-800 (4-BOX)
316 VA (CCR) 328 VA (AC) 267 W (DC)
FAA L-881 (2-Box)
158 VA CCR) 161 VA (AC) 134 W (DC)
ICAO APAPI
77 VA (CCR) 85 VA (AC) 70 W (DC)
316 VA (CCR) 328 VA (AC) 267 W (DC)
FAA L-881 (2-Box)
158 VA CCR) 161 VA (AC) 134 W (DC)
ICAO APAPI
77 VA (CCR) 85 VA (AC) 70 W (DC)
