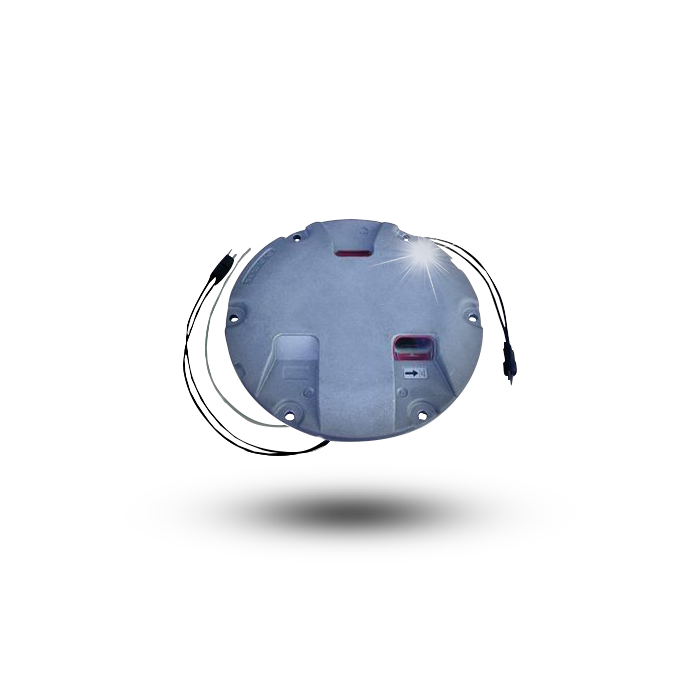

Slre
Inset Runway Edge Light
A bidirectional or unidirectional 12″ diameter light, the SLRE is used as a runway edge light for ICAO CAT I, II and III, FAA and military runways. The light offers stable chromaticity thanks to the use of dichroic filters. The lamp has a rated life of 1000 hours at full intensity, but over 3000 hours in field operating conditions. The cast aluminum dome and lower cover make the fitting sturdy, but lightweight too for easy handling in the field.
DIMENSION
Diameter
12″
Overhang
12.7 mm
Device depth
150 mm
COMPLIES WITH THE CURRENT EDITION OF THE FOLLOWING SPECIFICATIONS
ICAO
FAA
IEC
NATO
CAA
IAAE
AENA
POWER CONSUMPTION
2×105 W
Runway Edge White/Yellow
2×105 W
Runway Edge White/Red
2×105 W
Runway Edge Yellow/White
2×105 W
Threshold/End Green/Red
2×105 W
ADDITIONAL OPTIONS
Fuse Cut-out:
Electric device, placed in parallel with each lamp, that ensures the continuity of the secondary circuit in case of lamp failure.
