Aeol

Omnidirectional Elevated Light

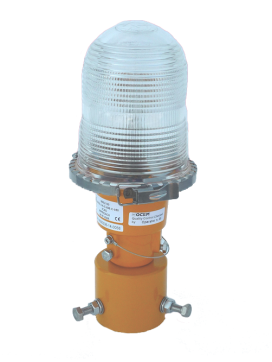

AEOL is a runway low-intensity light ideal for approach, threshold and wing bar, threshold/runway end, runway end, stopway, touchdown indicator, and fillets. A single lamp allows for quick and easy replacement without the need for tools. The lamp has a rated life of 1500 hours at full intensity, but over 3000 hours in field operating conditions.

    DIMENSION

    Configuration P-001
    w 116 mm; h 313vmm

    Configuration C-250
    w 116 mm; h MIN 364 mm MAX 2264 mm

    COMPLIES WITH THE CURRENT EDITION OF THE FOLLOWING SPECIFICATIONS

    ICAO
    FAP – 170

    POWER CONSUMPTION

    Lamp 045
    1×45 W
    Lamp 120
    1×120 W
