Sds

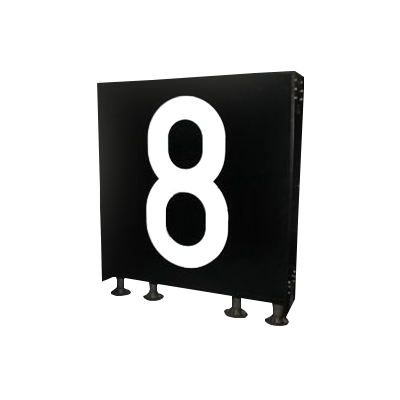

Fluorescent Runway Distance Signs

Designed in compliance with FAA 150/5345-44, STANAG distance signs, model SDS, are intended for military, or combined civil-military airfields, and provide to the pilot, either by day or night, the following different indications: the runway distance remaining from the runway end in thousands of feet; the position of the pendant cables for arrester hook engagement; the position where the pendent cables must be used to stop in case of failed take-off. Colors may be white or yellow on black background, depending on the application as defined by STANAG.

    DIMENSION

    Width
    1225 mm

    Height
    1425 mm

    Device depth
    251 mm

    COMPLIES WITH THE CURRENT EDITION OF THE FOLLOWING SPECIFICATIONS

    NATO

    POWER CONSUMPTION

    Current fixed at 6.6 A:
    150 VA

    Current variable between 4.8 – 6.6 A:
    200 VA

    ADDITIONAL OPTIONS

    Main options:

    01 = One Tether
    02 = Two Tethers
    03 = Retroreflective faces
