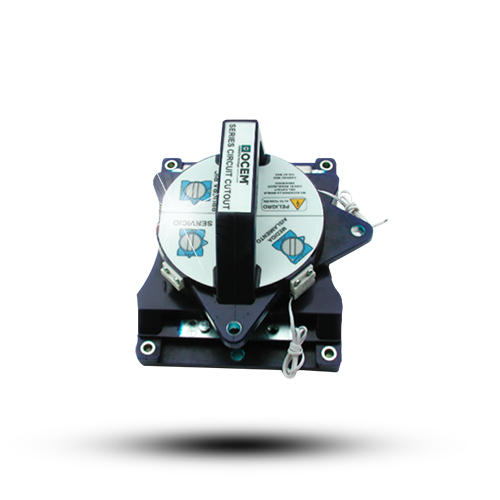

Scc
Make maintenance safe.
Short-circuits a series loop with a plug-and-receptacle, so crews can work on a fixture safely.
DIMENSION
216 x 200 x H120 mm
COMPLIES WITH THE CURRENT EDITION OF THE FOLLOWING SPECIFICATIONS
IEC
FAA
AENA
POWER CONSUMPTION
–
ADDITIONAL OPTIONS
Applications:
This equipment short-circuits and connects to ground the series circuit output terminals of the constant current regulator and assures the series circuit is not powered during the site maintenance and testing operations.
SCC allows to modify the functional and protective electrical wirings between the constant current regulator and the series circuit/grounding cables by simply operating the mobile upper handle plug, avoiding possible contacts to the high voltage parts of the circuit.
The cutout includes two sections:
• the body, which the cables of the series circuit and for grounding purposes are wired to
• the handle plug, which permits different connection combinations between the constant current regulator and the series circuit, depending on its position.
