Lims

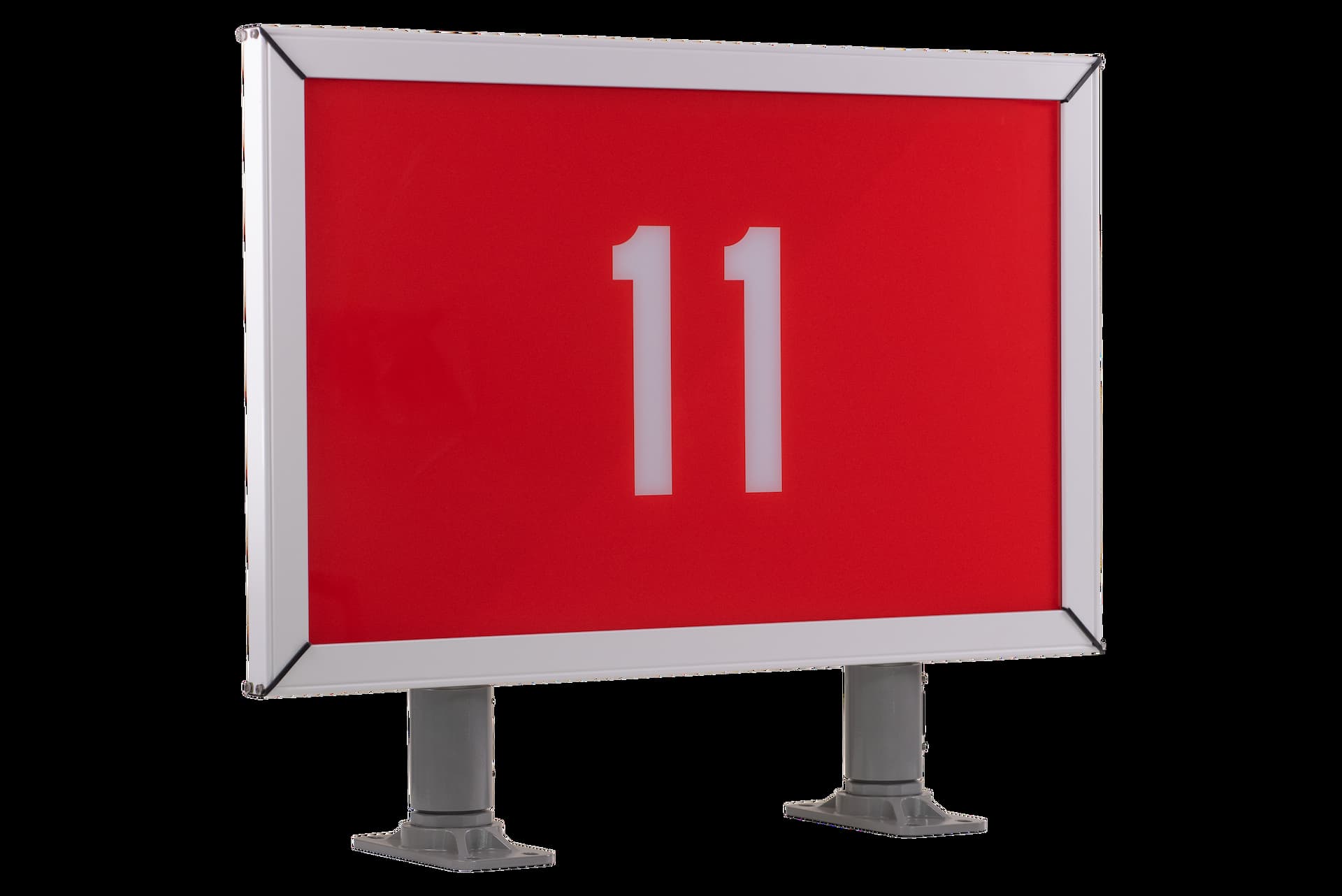

LED Luminous Guidance Sign Single Face

Inside lighted, LIMS are designed for use on airport taxiways and runways to mark taxi routes and intersections, by day and by night. Colors may be black on yellow, yellow on black, or white on red depending on the application as defined by ICAO. Designed in compliance with FAA AC 150/5345-44, it has a constant average luminance widely exceeding ICAO. It varies in length from 1m to over 3m depending on inscription and has one to three LED sticks of variable length positioned in the top of the sign to facilitate maintenance operations.

    DIMENSION

    Width
    10 = 990 13 = 1250 15 = 1470 20 = 1950 22 = 2190 24 = 2430 30 = 2890

    Height
    3 = 300 mm Legend Height 4 = 400 mm Legend Height

    Depth
    145 mm

    COMPLIES WITH THE CURRENT EDITION OF THE FOLLOWING SPECIFICATIONS

    ICAO
    EASA
    AENA
    NATO
    ENAC
    IEC
    TCCA
    CASA

    POWER CONSUMPTION

    TYPE 10
    32W 15W (SERIES Circ. VOLTAGE Circ.)

    TYPE 13
    36W 17W (SERIES Circ. VOLTAGE Circ.)

    TYPE 15
    40W 21W (SERIES Circ. VOLTAGE Circ.)

    TYPE 20
    51W 30W (SERIES Circ. VOLTAGE Circ.)

    TYPE 22
    53W 33W (SERIES Circ. VOLTAGE Circ.)

    TYPE 24
    61W 34W (SERIES Circ. VOLTAGE Circ.)

    TYPE 30
    70W 43W (SERIES Circ. VOLTAGE Circ.)

    ADDITIONAL OPTIONS

    Main options:

    01 = Tether
    02 = Yellow frame
    10 = Monitoring
    48 = Reinforced version FAA-mode 3 (483 km/h)
    69 = Orange rear side for single face signs
    70 = Bird Spikes
