LIRC

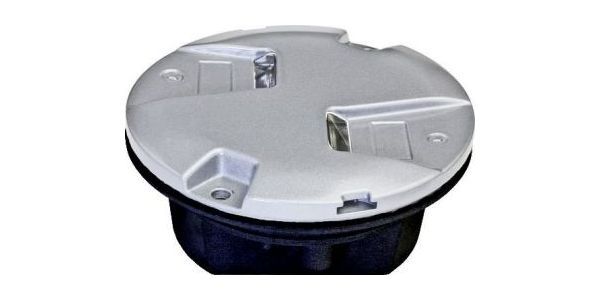

LED Inset Runway Centreline and Rapid Exit Taxiway Indicator Light (R.E.T.I.L.)

COMPLIANT with the Current Edition of the following Specs:

ICAO: Annex 14 – Volume I

IEC: TS 61827

FAA: L-850A-T AC150/5345-46 and “Engineering Brief No.67”

NATO: STANAG 3316



DIMENSIONS:

Diameter: 8″

Protrusion: 6.3 mm

Fixture Depth: 97.5 mm

Base Depth: 125 mm



CONSUMPTIONS:

Runway Centreline White/Red: 22 VA (1 plug) / 26 VA (2 plugs)

Runway Centreline White/White: 29 VA (1 plug) / 32 VA (2 plugs)

Runway Centreline White: 16 VA

Runway Centreline Red: 10 VA

Runway Centreline Red (L-850T): 11 VA

R.E.T.I.L. Yellow: 16 VA



MAIN OPTIONS:

Arctic Kit: electric device, thermostatically controlled, that heats the area near the prisms (inset fixtures) or the external glass lens (elevated fixtures) favoring the melting of the ice and/or snow; thus avoids the light beam obstruction with a behaviour similar to a traditional halogen lamp. 20 VA per plug.

Monitoring: electronic device that returns information of open circuit at the secondary of the isolation transformer in case of failure of a luminous LED source or control board.
