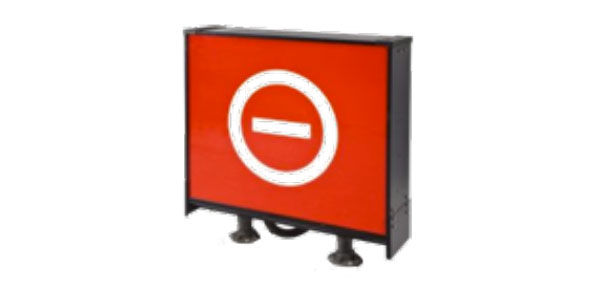

LIGS

LED Luminous Guidance Signs

COMPLIANT with the Current Edition of the following Specs:

ICAO: Annex 14 – Volume I

NATO: STANAG 3316



DIMENSIONS:

Width: 1 Module: 991 mm, 2 Modules: 1976 mm, 3 Modules: 2961 mm, 4 Modules: 3946 mm

Height: Character H300: 838 mm, Character H400: 1038 mm

Depth: 248 mm



CONSUMPTIONS:

Power required to the CCR for each module Single and Double Face:

Current fixed at 6.6 A: 40 VA

Current variable between 4.8 – 6.6 A: 55 VA

Current variable between 2.8 – 6.6 A: 95 VA



MAIN OPTIONS:

01 = Tether
18 = Double power supply for 3 and 4 module signs
